Product Description
| Part Number | Description | Packaging Unit | Weight kg / lbs |
| 563720 | BD 40 A | 1 | 0.22/ 0.49 |
| 563740 | TD 40 A | 1 | 0.33/ 0.73 |

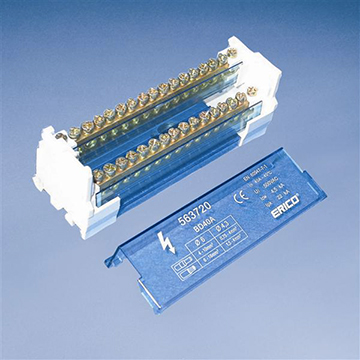

40 A Two and Four Pole Distribution Block
- Minimum space for maximum power
- Easy connections
- Protection: Transparent cover and screen
- Self extinguishing: UL94 V-0
- Safe connections
- Rail or screw mounting*
- Halogen Free
- Rohs Compliant
Click here for Distribution Blocks, Power Blocks and Power Terminals Catalogue (13.4 MB)
Specifications
