Brake Resistors
OPTIBRAKE
Dynamic Braking ResistorsOptibrake dynamic braking resistors are designed specifically for the Optidrive range. For use with high inertia loads which need to be stopped rapidly. Optibrake dynamic braking resistors assist the Optidrive in managing the electrical energy returned from the motor during braking by converting it to heat energy.
Optidrive Stock Drives Catalogue (10.5 MB)
Read more -

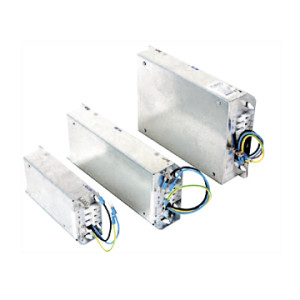

EMC Filters
OPTIFILTER
RFI Line FiltersAll Optidrive products are manufactured as standard with an internal EMC filter, unless specified by the customer. In general, this internal filter will provide compliance with international standard requirements for the majority of industrial installations and applications. Where a higher standard of EMC compliance is desired or required, Invertek Drives can provide a range of suitable filters to ensure that an EMC compliant solution for all possible applications can be realised.
Optidrive Stock Drives Catalogue (10.5 MB)
Read more -

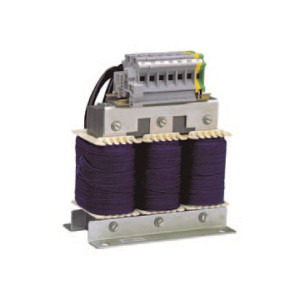

Input Chokes
Reduce supply harmonic current distortion and increase Fourier Analysis of Harmonic Distortion protection against mains voltage spikes and notches
Input chokes can be used to reduce the supply line harmonic currents and voltage distortion generated by almost all inverter drives on the market today. Invertek Drives have selected a range of chokes matched to the Optidrive range to provide the best reduction in supply current harmonics whilst also providing enhanced protection for the Optidrive against transient voltages (‘spikes’) or other mains borne interference.
Optidrive Stock Drives Catalogue (10.5 MB)
Read more -

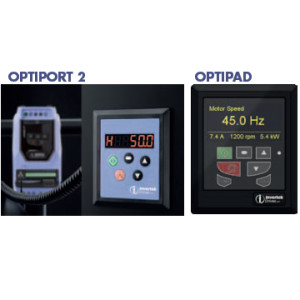

Keypads and Displays
Optiport 2 and Optipad units act as the remote keypad and display for the Optidrive on the network which has the same serial address. The physical layout and the operation of the Optiport keypad and display mimic the Optidrive exactly.
Optidrive Stock Drives Catalogue (10.5 MB)
Read more -
Local Isolator
Local isolator option allows complete disconnection of the incoming AC power to the drive. The isolator mounts directly to the drive, and provides a local disconnect option. The handle can be padlocked in the off position for safe maintenance.
Optidrive Stock Drives Catalogue (10.5 MB)
Read more -
Networking Options
- PC Connection Kit
- RS485 Data Cable Splitter
- RJ45 Data Cables
- RJ45 8 Way Network Hub
Optidrive Stock Drives Catalogue (10.5 MB)
Read more -
Output Filters
In most applications, the unfiltered output from an inverter drive gives satisfactory performance but to improve system functionality, reliability and longevity, output filtering is strongly recommended in some applications, including:
- Long motor cables, up to 200m
- High capacitance motor cables (i.e. typical “pyro” wire, used for fire protection)
- Multiple motors connected in parallel
- Motors without inverter grade insulation (typically older motors)
Optidrive Stock Drives Catalogue (10.5 MB)
Read more -
Software / Commissioning
- Powerful PC Software
- Drive commissioning and parameter backup

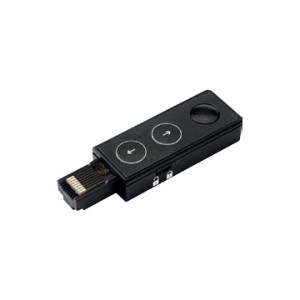

- OPTISTICK
- Rapid Commissioning Tool
- Product Code: OPT-2-STICK-IN
Optidrive Stock Drives Catalogue (10.5 MB)
Read more - Powerful PC Software
-

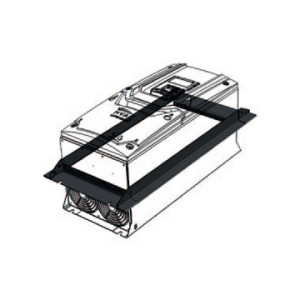

Through Hole Mount Kit
Through hole mount kits allow optidrive to be mounted through panel, ensuring that the heat from the drives heat sink is kept spate from the control electronics. This allows the optimum panel cooling arrangement to be used, with best possible separation of hot and cold air.
Optidrive Stock Drives Catalogue (10.5 MB)
Read more
