BC Ribbed-Steel Busbar Clamp
- Connects two copper busbars together or ERICO® FLEXIBAR® to copper busbar
- Two ribbed plates complete with screws
- Allows for excellent electrical contact
- Installs quickly and easily
- Ideal for on site modifications
- RoHS compliant
Solutions for Electrical Power and Ground Connections Catalogue (6,6 MB)
Read more -
CONT-KIT Metal Nuts and Bolts Contact Kit
- For optimal electrical connections
- Kit includes 100 bolts, 100 nuts, 200 flat washers and 200 contact washers
Solutions for Electrical Power and Ground Connections Catalogue (6,6 MB)
Read more -
ERICO® FLEXIBAR® End Cover 20, 24 & 32
- End cover for ERICO® FLEXIBAR® and Insulated Power Braid
- Allows for visual inspection of connection
- Easy fitting after fixing
- RoHS compliant
Click here for Erico Flexible Conductors Catalogue (14.2 MB)
View products -
FBC Connectors for Connecting without Drilling
- Very compact clamp for connecting cable conductors or ERICO® FLEXIBAR® to busbar without drilling
- Conductor is clamped with a pressure plate
- Clamps can be mounted and slid into position on busbar prior to connecting conductors
- Connections can be added after busbar has been mounted
- Single screw locks clamp and makes connection
- GOST compliant
- RoHS compliant
Solutions for Electrical Power and Ground Connections Catalogue (6,6 MB)
Read more -
FC ERIFLEX® FLEXIBAR® Clamp
- Connects ERICO® FLEXIBAR® to copper busbar
- Two plates complete with screws
- Allows for excellent electrical contact
- Installs quickly and easily
- Ideal for on site modifications
- RoHS compliant
Solutions for Electrical Power and Ground Connections Catalogue (6,6 MB)
Read more -

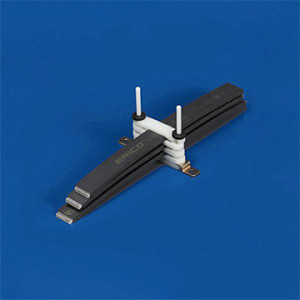

FS Spacer Clamp
Helps ensure correct support for ERICO FLEXIBAR, IBSB & IBSBR in parallel, without damage to the insulation.- Helps ensure correct space for optimum cooling.
- 4 ERICO FLEXIBAR in parallel maximum
- UL 67
- Recommended distance between clamps: 16 inches.
Click here for Erico Flexible Conductors Catalogue (14.2 MB)
View products -

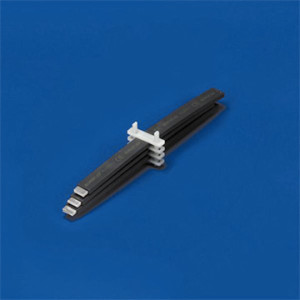

FS Spacer Clamp, Snap Close
- Helps ensure correct support for ERICO FLEXIBAR, IBSB & IBSBR in parallel, without damage to the insulation.
- Helps ensure correct space for optimum cooling.
- 4 ERICO FLEXIBAR in parallel maximum
- UL 67
- Recommended distance between clamps: 16 inches.
Click here for Erico Flexible Conductors Catalogue (14.2 MB)
View products -
HCBC High Current Busbar Clamp
- Connects copper busbar to copper busbar, ERICO® FLEXIBAR® or power shunt
- Made with non-magnetic materials for high current connections between ERICO® FLEXIBAR® and rigid busbars such as transformer terminals
- Rigid design assures even contact pressure
- Installs quickly and easily
- Ideal for on site modifications
- RoHS compliant
Solutions for Electrical Power and Ground Connections Catalogue (6,6 MB)
Read more -
QCC ERIFLEX® FLEXIBAR® Clamps
- Connects ERICO® FLEXIBAR® to punched busbar
- Allows for excellent electrical contact
- Compact, space saving design
- Installs quickly and easily
- Ideal for on site modifications
Solutions for Electrical Power and Ground Connections Catalogue (6,6 MB)
Read more -

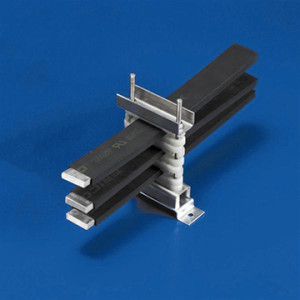

RFS Reinforced ERICO FLEXIBAR Support
- Allows up to 8 ERICO FLEXIBAR in parallel.
- Easy mounting in the panel. (.984 in pitch)
- Recommended distance between clamps: 16 inches.
Click here for Erico Flexible Conductors Catalogue (14.2 MB)
Read more -

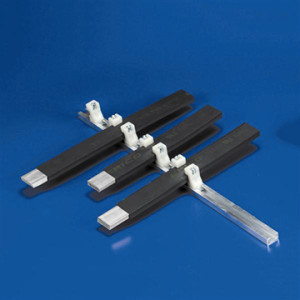

UFS Kit ERICO FLEXIBAR Support
Assembly comprised of a 2 m aluminum section and 24 retaining blocks made of glass-reinforced halogen-free polyamide.
- Possible to make up 3 supports, 650 mm long each for 4 ERICO FLEXIBAR
- Recommended distance between clamps: 16 inches max.
Click here for Erico Flexible Conductors Catalogue (14.2 MB)
Read more
