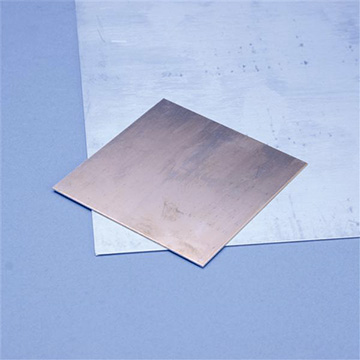

BMS bimetal plate

BMS Bimetal Plate

  • For high performance contact between aluminum busbars and copper busbars
  • 70% aluminum – 30% copper

pdf icon smallSolutions for Electrical Power and Ground Connections Catalogue (6,6 MB)

Categories: , ,

Product Description

  • Material: Aluminum; Copper



Part Number Description Length Width Thickness Packaging Quantity Unit Weight
553080 BMS 100 100 mm 100 mm 1 mm 10 0.058 kg
553090 BMS 500 500 mm 500 mm 1 mm 2 1.450 kg



Thickness is comprised of 0.7 mm (0.028″) of aluminum and 0.3 mm (0.012″) of copper.

Specifications
